Repeat Drive Max Brushed

Description

• 6mm hardened steel shaft, 40mm length
• Durable 24mm Max gearbox
• High power 130 motor
• 71g overall weight
• 27:1 gear ratio
• 12V specs:
  • 1070rpm free speed
  • 5.25kg.cm stall torque
  • 6A stall current

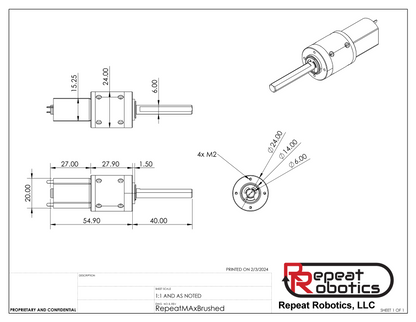

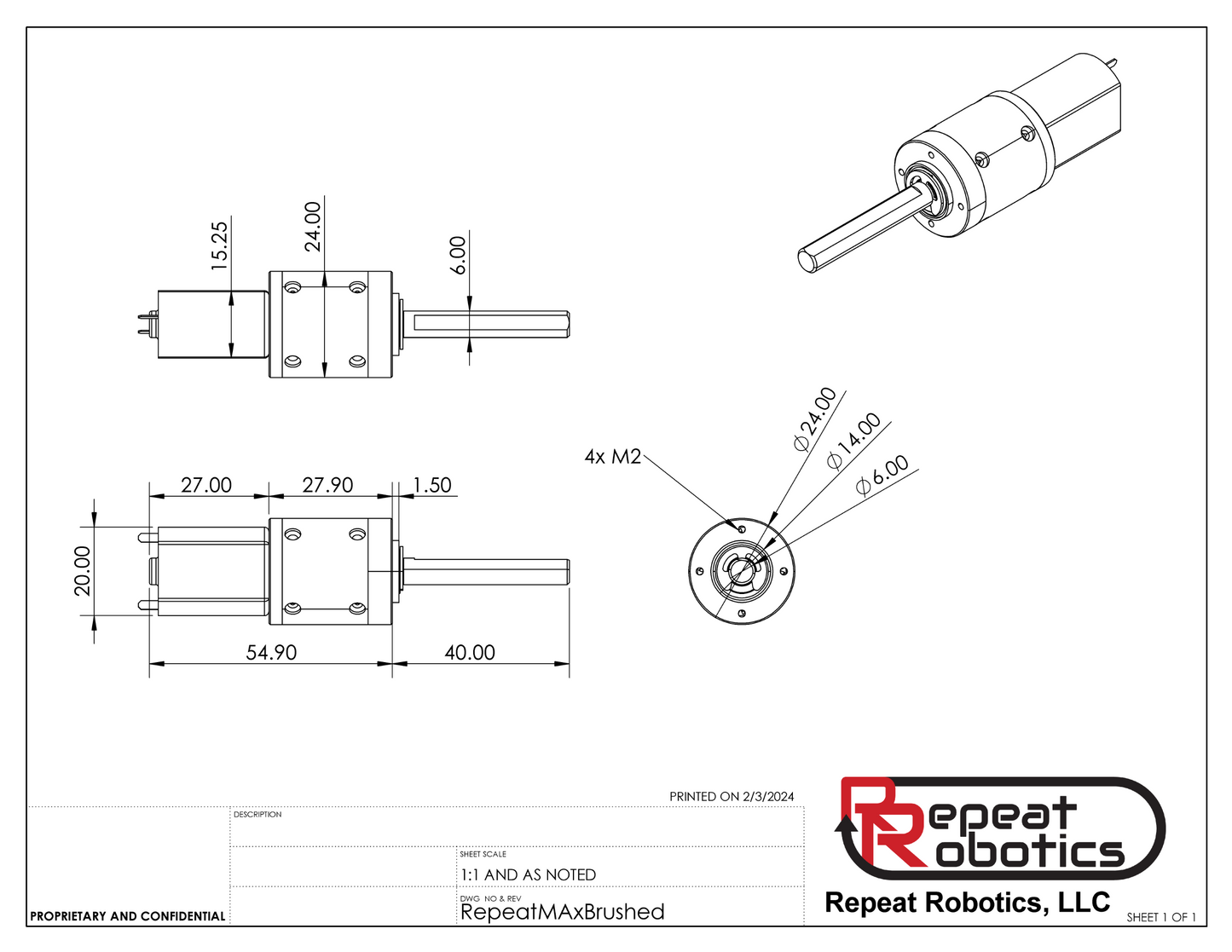

CAD File: https://grabcad.com/library/repeat-max-brushed-1

If you find the motors stuttering when driving them, running them in for a while and a 0.1 uf capacitor across the motor leads can help.
