Repeat Robotics

Repeat Compact Brushed

Repeat Compact Brushed

$26.00
$26.00
Sale Sold out

Description

  • Billet 4mm hardened steel shaft, 25mm length
  • Dual bearings on the gearbox output shaft
  • High power 130 motor
  • 45.5g overall weight
  • Ring gear squared to 16.5mm flat to flat
  • 22.6:1 gear ratio
  • 12V specs:
    • 1070rpm free speed
    • 3.85kg.cm stall torque
    • 4.3A stall current

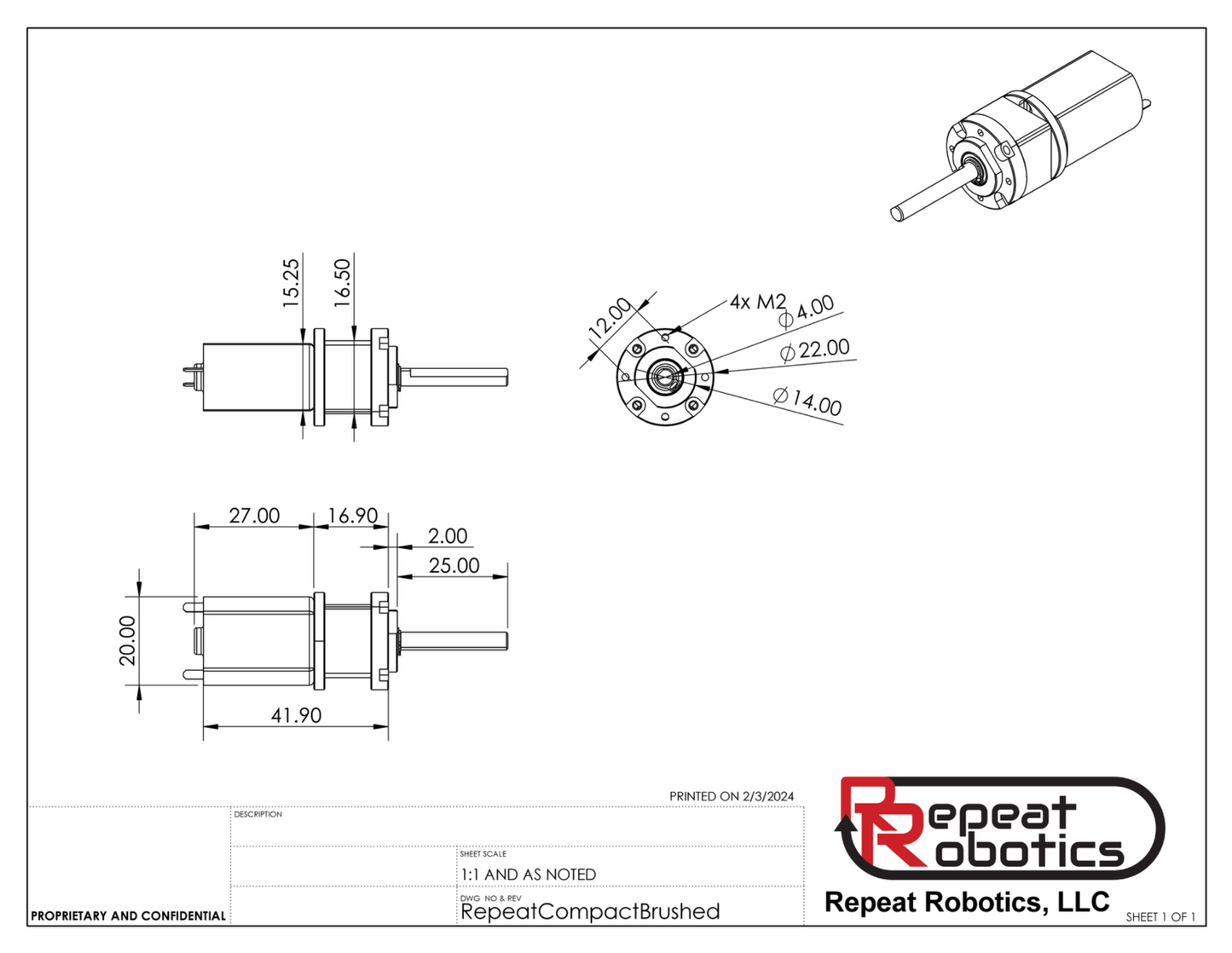

Repeat Compact Brushed Cad File
