Repeat Robotics

Repeat Drive Max

Repeat Drive Max

Regular price $55.00
Regular price Sale price $55.00
Sale Sold out

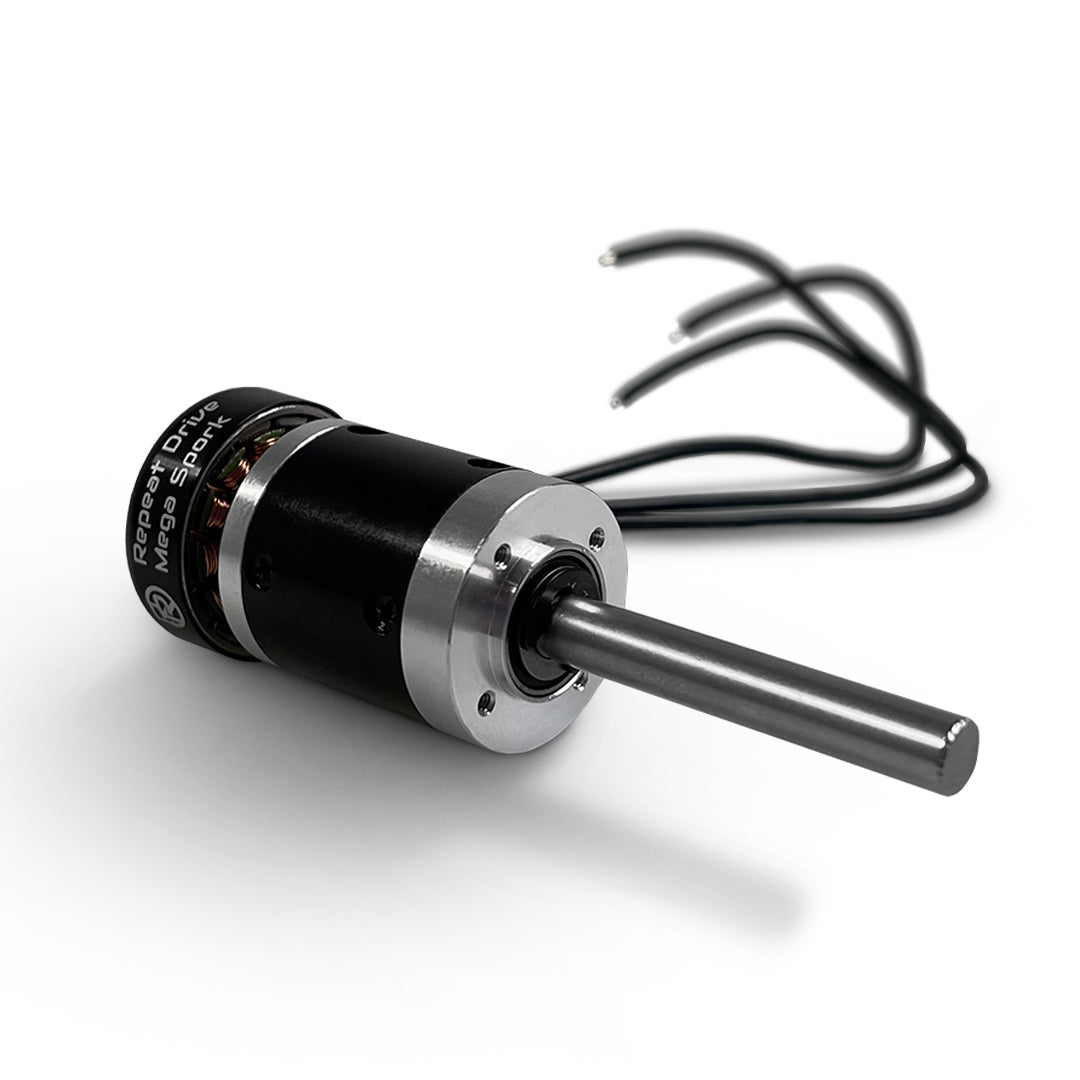

The Repeat Drive Max is a beetle weight drive motor and gearbox designed for combat robotics. It boasts a unique 6mm shaft, a 2100kv 2004 brushless motor mated to a 24mm 27:1planetary gearbox, ensuring efficient power transfer and robust performance.

It's tailored for both direct and indirect drive applications. Its distinguishing feature is the one-piece shaft and carrier plate, crafted to resist hard sideways impacts and prevent dislodging during intense battles. Compatible with the Repeat Brushless Drive ESC, it offers a seamless, bi-directional driving experience.

View full details

Collapsible content


  • Custom wound 2004 brushless motor
  • 2s-6s rated voltage
  • 24mm, 27:1 all metal planetary gearbox
  • 6mm “D” extra long output shaft (cut to the length that you need to save weight)
  • Custom billet 4130 final planet carrier and output shaft
  • Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
  • 69g weight
  • 4x18mm M2 face mount hole pattern



Documents | CAD Models
