Robot Smashing League

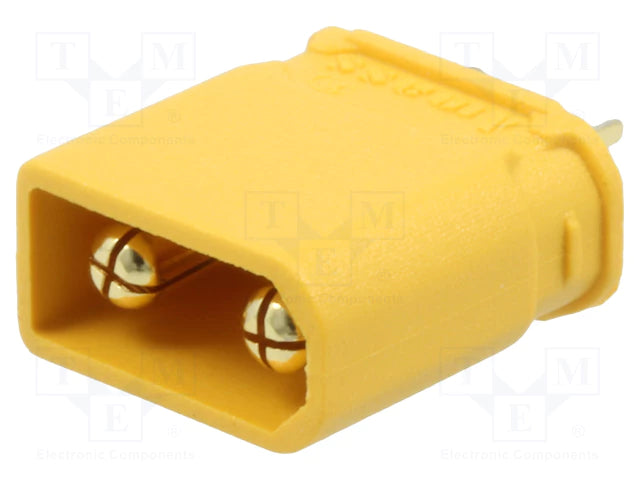

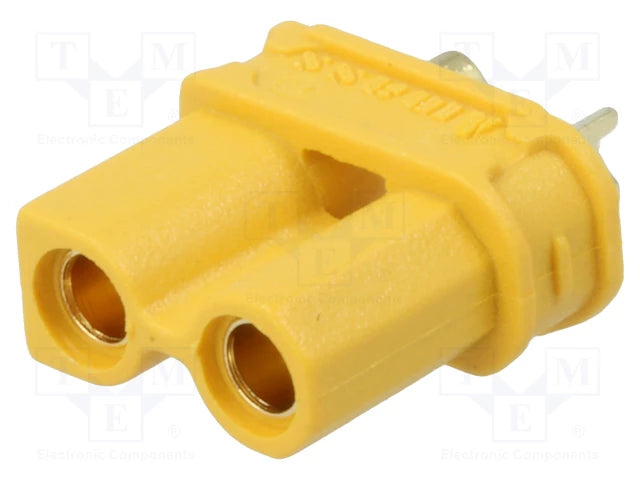

XT30U Connectors (10pcs)

XT30U Connectors (10pcs)

$6.00
$6.00
Sale Sold out
Type
The XT30U  Connectors are easily assembled into custom power wires with the use of a solder cup instead of a crimping tool for contact attachment.
View full details

Specs

  • Manufacturer: AMASS
  • Connector: Plug
  • Type of connector: DC supply
  • Connector series: XT30
  • Number of pins: 2
  • Mechanical mounting: for cable
  • Electrical mounting: soldering
  • Contact plating: gold flash
  • Color: yellow
  • Current rating: 15A
  • Flammability rating: UL94V-0
  • Operating temperature-20 to 120°C
  • Rated voltage: 500V
  • Spatial orientation: straight
  • Wire size: 18AWG
  • Contact material: brass
  • Mechanical durability: 1000 cycles
  • Body material: polyamide

Includes

10 individual connectors
