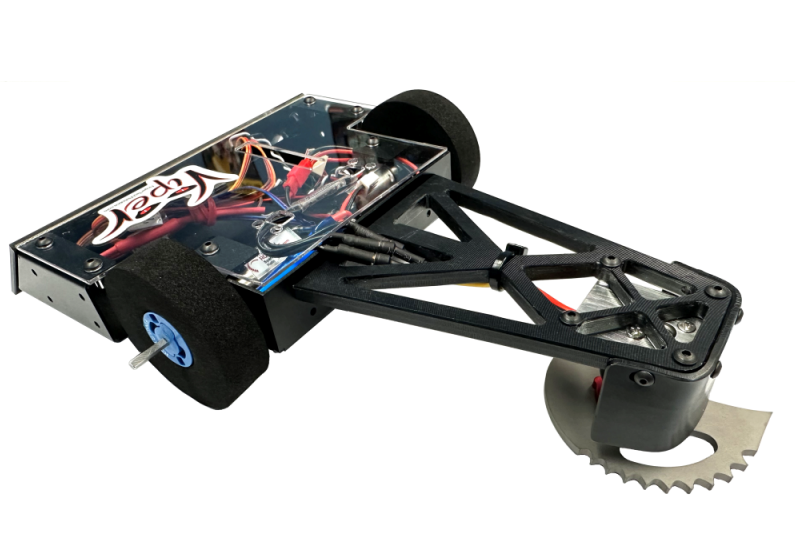

FingerTech 'Viper' Tail Spinner Add-On

Weight: 138grams (4.84oz) when replacing the heavier polycarbonate front armor with UHMW front armor.  Added to the base kit, the total weight is 433g (15.27oz)

(9V battery not recommended to power this Add-On.)

Requires:

• Weapon Safety Lock
• 5/64" Hex Wrench (came with your Viper kit)
• Phillips screwdriver #2
• Threadlock liquid (medium strength)
• Zipties, or cable-ties

Kit Includes:

• UHMW Tail Arm: A custom machined 1/4in thick UHMW Tail Arm with twelve mounting holes to attach everything.
• UHMW Motor Guard: 1/8in thick UHMW Motor Guard with mounting holes and slots, to bend around the weapon motor.
• Weapon Motor: F2822-1100KV Brushless Motor (4mm shaft) + Screws
• Brushless Controller: 20A Brushless Speed Controller
• Angled Motor Mount: The Angled F2822 Motor Mount fastens the motor solidly and aligns the blade with the floor.
• Blade Mount: FingerTech Blade Mount fastens directly to the motor body for maximum strength.
• Blade: A 3.5in Asymetric Titanium Blade is sharp and light and can be whipped around extremely fast!
• Armor: New UHMW Front Armor to absorb the opponent's attack, leaving them open to side swipes.
• Fasteners: All the screws (4pcs 6-32 x 1/4in, 4pcs 6-32 x 1/2in, 3pcs 4-40 x 1/2in, 4pcs 4-40 x 3/8in Screws) and a 1/16in Hex Wrench
• Instructions: Detailed instructions with pictures: Viper-T-Spinner-add-on-R1.pdf

As with anything related to combat robots, it is potentially dangerous to add a spinning weapon to a robot. Never power up the robot outside of a safety enclosure. Always use a safety lock and follow proper activation procedure.
