Fingertech
FingerTech Angled F2822 Motor Mount
FingerTech Angled F2822 Motor Mount
Regular price
$9.84
Regular price
Sale price
$9.84
Quantity
Couldn't load pickup availability

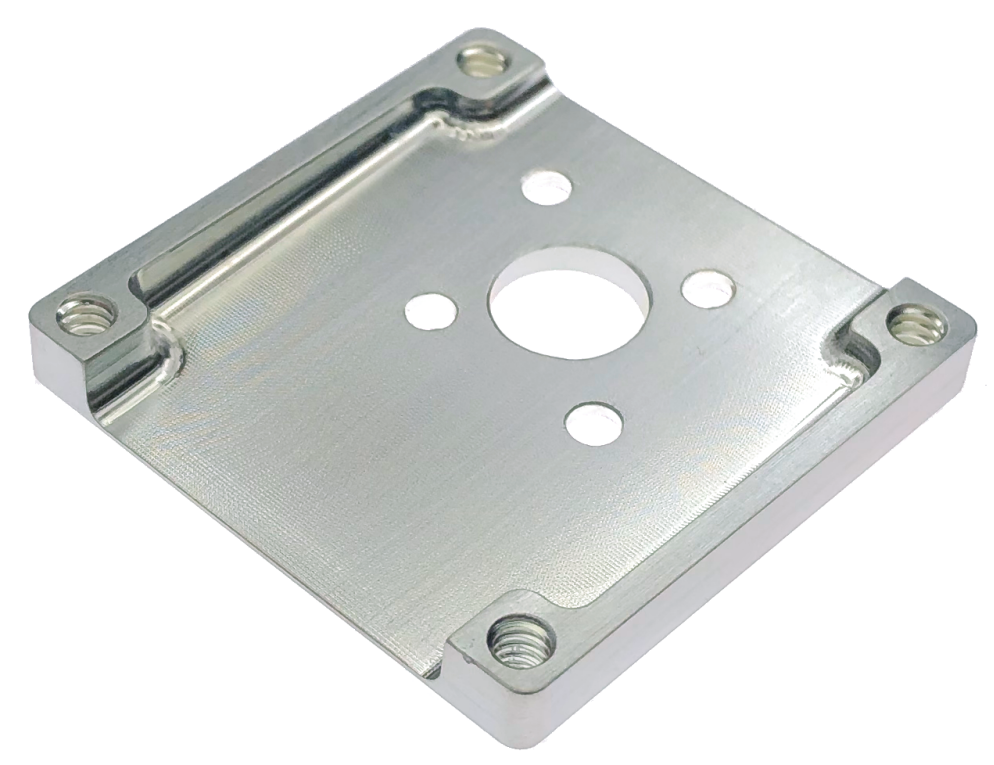

This 6061-T6 aluminum mount is specifically designed for the F2822 motor and is compatible with the Viper Horizontal Spinner Add-On. Its angled design disperses impact forces and positions the blade at a downward angle, allowing for effective strikes on lower areas of opponents.
Share

Collapsible content
Specs
- Width: 38.1mm (1.5in)
- Length: 38.1mm (1.5in)
- Thickness: 4.76mm (0.19in) plus 0.9mm (0.04in) for washers (so the screw heads don't stick out the bottom - will be integrated in next revision)
- Mounting holes: Four 6-32 holes spaced 32.53mm (1.28in) apart
- Material: 6061-T6 Aluminum
- Includes four nylon washers
- Motor Angle: 3.58°
- Weight: 7.67grams (0.27oz)
Documents | CAD Models
