FingerTech 3lb Beater Bar Electronics

Pulley reduction: 2:1 Beater bar speed @ 7.4V: 11,000RPM theoretical Beater bar speed @ 11.1V: 16,500RPM theoretical Total Weight: 145grams (5.11oz) Beater bar/motor shaft center-to-center distance: 66.0mm (2.60in)

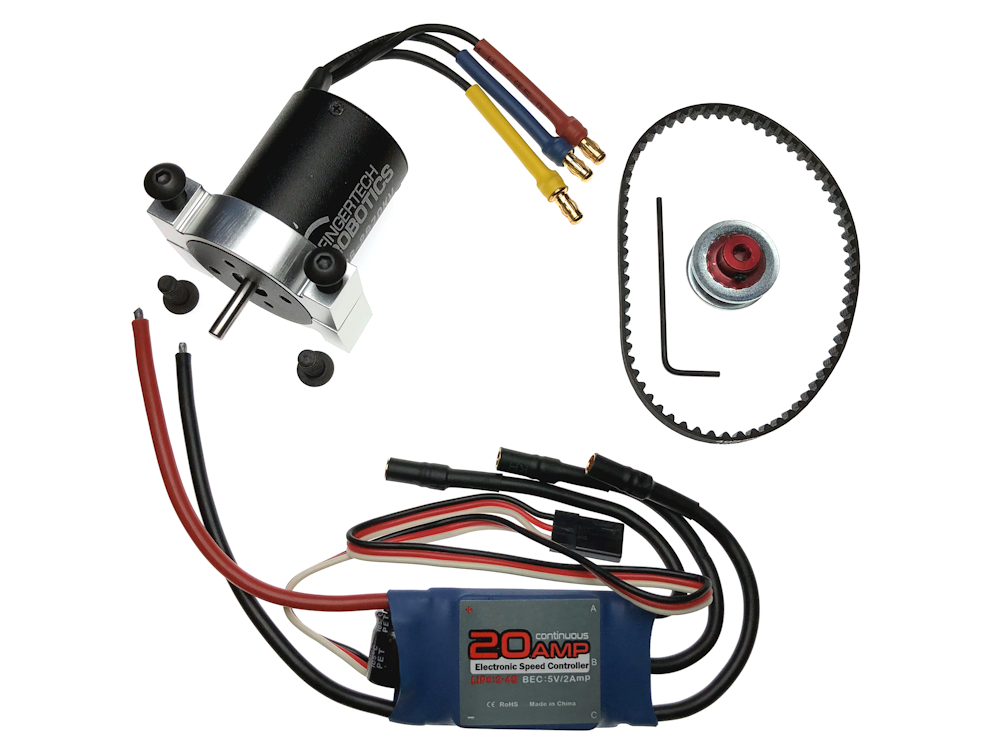

1 - FingerTech S2838-2970KV Brushless Inrunner Motor (includes bullet connectors for soldering to ESC) 1 - 28mm Motor Clamp Mount (Old style used M2.4x0.45 screws) 1 - MB30020 20A Brushless Speed Controller (built-in 2A 5V BEC) 1 - FingerTech 15T S3M Timing Pulley (bored to 1/8in to fit motor shaft) 1 - FingerTech 67T (201mm) Timing Belt1 - 0.050" Hex Wrenchfor pulley

• Beater_Bar_Electronics_Assy.IGS
• Beater_Bar_Electronics_Assy.STEP
