FingerTech 1lb Beater Bar Electronics
FingerTech 1lb Beater Bar Electronics
Regular price
$34.00
Regular price
Sale price
$34.00
Unit price
/
per

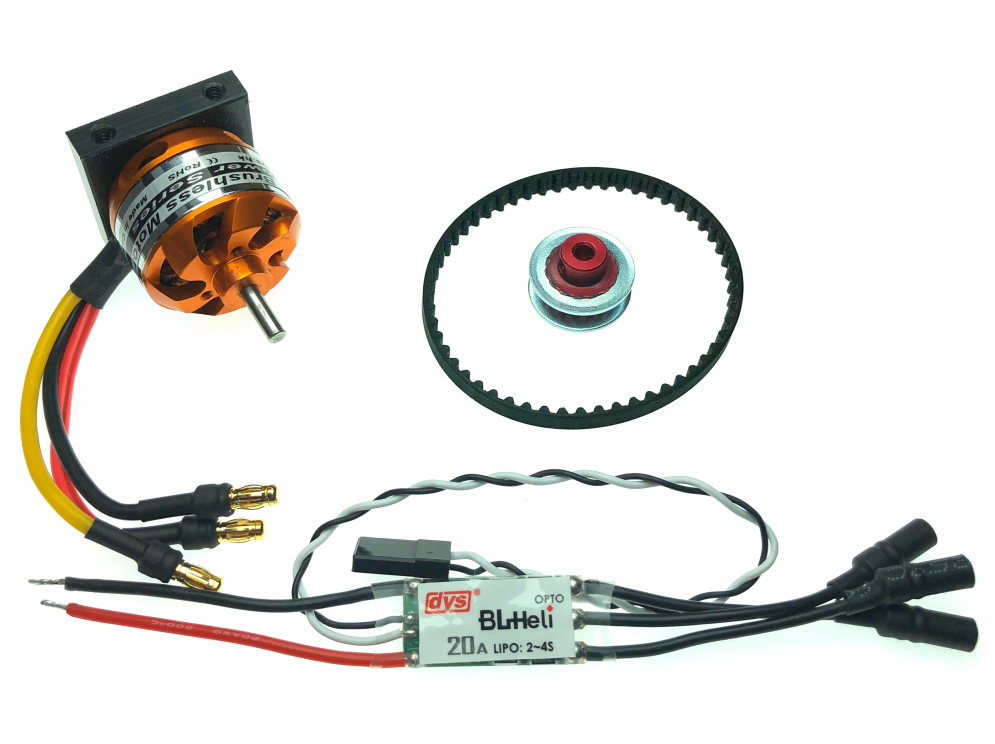

This Brushless Motor and ESC combo are perfect for spinning the FingerTech 1lb Beater Bar.
Can be run on 7.4V, 11.1V, or 14.8V for up to 10k RPM! Includes motor, mount, speed controller, and S3M pulley/belt.
Share
Collapsible content
Specs
Pulley reduction: 1.73:1
Beater bar speed @ 7.4V: 4,700RPM theoretical
Beater bar speed @ 11.1V: 7,050RPM theoretical
Beater bar speed @ 14.8V: 9,400RPM theoretical
Total Weight: 60grams (2.12oz)
Beater bar to motor shaft center-to-center distance: 51.5mm (2.03in)
Includes
- 1 - FingerTechF2822-17 1100KV Brushless Outrunner Motor(includes four Phillips head M3 screws for fastening to motor mount)
- 1 -F-Series Motor Face Mount- has two 6-32 threaded holes top and bottom for mounting to baseplate and lid.
- 1 -BL20A2-4S 20A Brushless Speed Controller (no built-in BEC)
- 1 - FingerTech15T S3M Timing Pulley(bore enlarged to 1/8in for F2822 motor shaft)
- 1 - FingerTech55T (165mm) Timing Belt
- 1 - 0.050"Hex Wrench for tightening pulley
