Fingertech

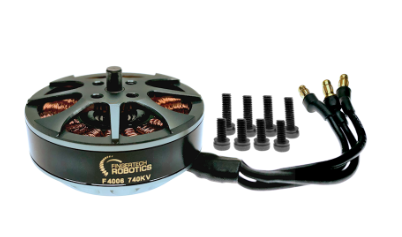

F4006-740KV Brushless Outrunner

F4006-740KV Brushless Outrunner

Regular price $40.21
Regular price Sale price $40.21
Sale Sold out

Upgrade your weapon's motors with ease and power. FingerTech's newest innovation, the F4006 740KV Brushless Outrunner, can effortlessly handle large blades without breaking a sweat.

It can run on 4S batteries, and draw up to 40A

Don't let its shockingly low profile of only 20mm fool you, this motor can take a serious beating with a thick 4mm shaft.

View full details

Collapsible content

Specs

  • KV: 740rpm/V
  • RPM @ 2S: 5,476rpm
  • RPM @ 3S: 8,214rpm
  • RPM @ 4S: 10,952rpm
  • Voltage: 7.4V-14.8V (2S-4S)
  • Max Power: 435W
  • Max Current: 40A
  • Resistance: 0.23Ω
  • Stall Torque:Notes about Brushless Motor Torque

Motor Diameter: 44.5mm (1.75in)
Motor Length: 20mm (0.787in)
Wire Length: 65mm (2.5in) with 3.5mm male bullet connectors
Shaft Material: SUS420 Stainless Steel, 50HRC
Shaft Diameter: 4mm (0.157in)
Shaft Length: 5.4mm (0.212in)

Mounting Holes:
- Two M3 holes spaced 19mm (0.75in), two M3 spaced 25mm (0.98in) offset 90 degrees. Four M3 x 7mm socket head cap screws included.
- The rotating portion of the motor has four M3 screw holes spaced evenly on a 12mm circle. Four M3 x 10mm Hex screws included.

Wiring: Connect the three ESC wires any way you like. If the motor is spinning backwards, swap any two wires.

Includes

Safety

Documents | CAD Models

Other Beetleweight Products
