Repeat Drive Axle Mk2 (2pcs)
Repeat Drive Axle Mk2 (2pcs)
Regular price
$6.00
Regular price
Sale price
$6.00
Unit price
/
per
Couldn't load pickup availability

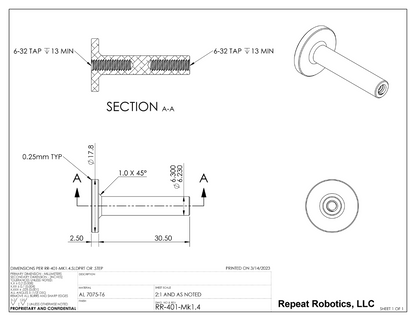

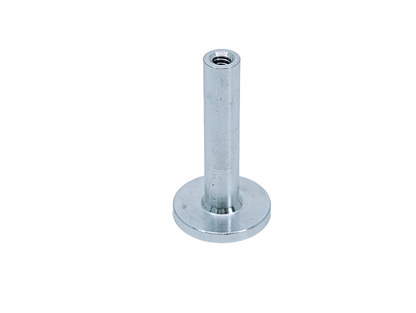

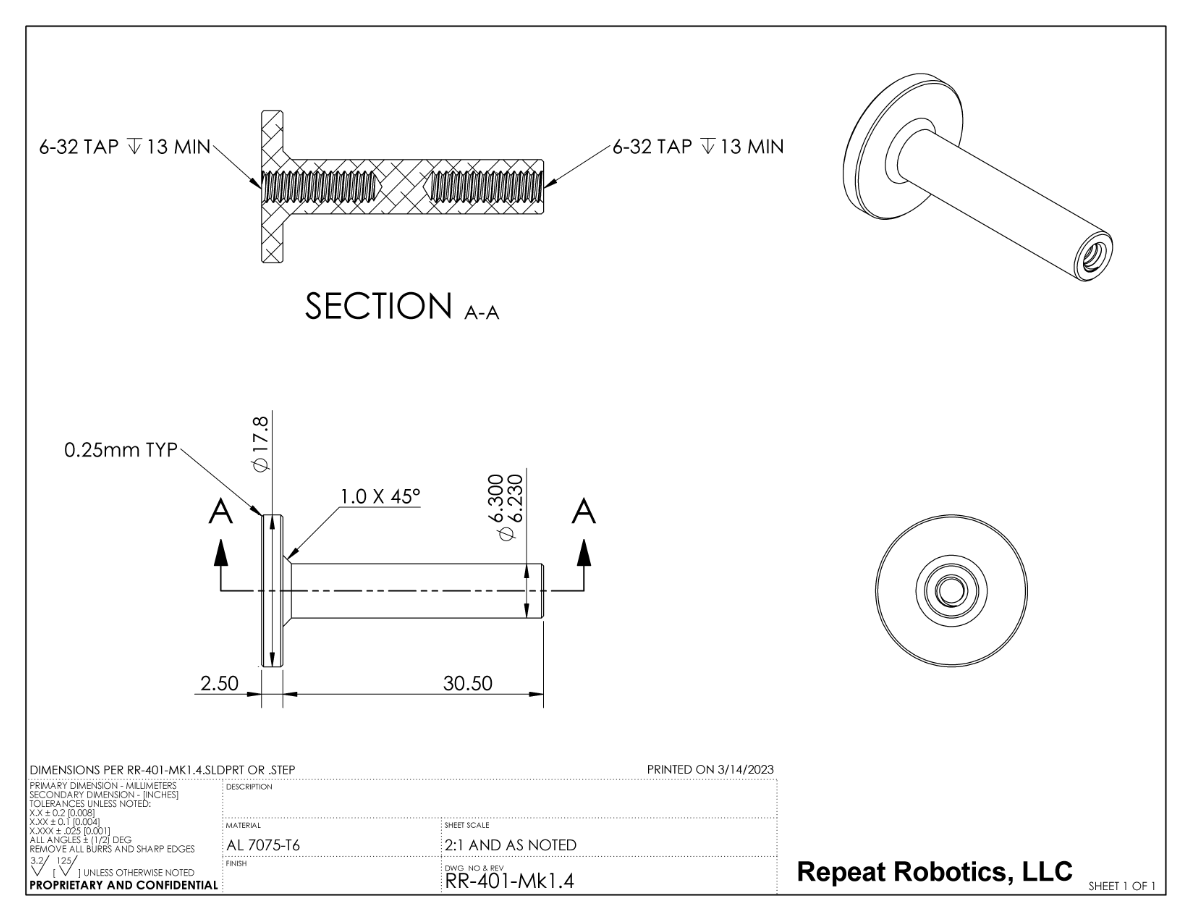

Repeat Drive Axle is a 1/4″ flanged, 7075 aluminum standoff, designed to be used in Beetleweight drive applications.
An increasing amount of insect weight combat robots use plastic frame rails, these axles have a flanged section to keep them perpendicular to your frame and your drive running smooth.
Share



Collapsible content
Specs
- High strength 7075 Aluminum material
- Slightly undersized 1/4 inch shaft to fit bushings and bearings
- Undersized 17.8mm flange to fit into 18mm pockets for extra strength
- Tapped for 6-32 screws
- Generous chamfer at the base of the standoff increases strength
- 7.5g for a set of 2 axles (~4 g each)
Includes

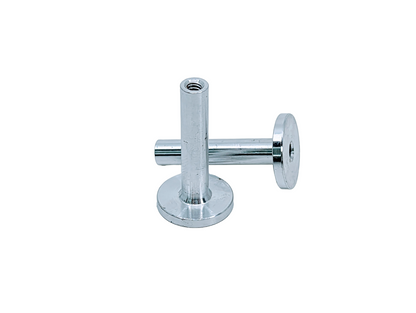

Includes two (2) custom machined aluminum axles
Safety
Documents | CAD Models
