Fingertech

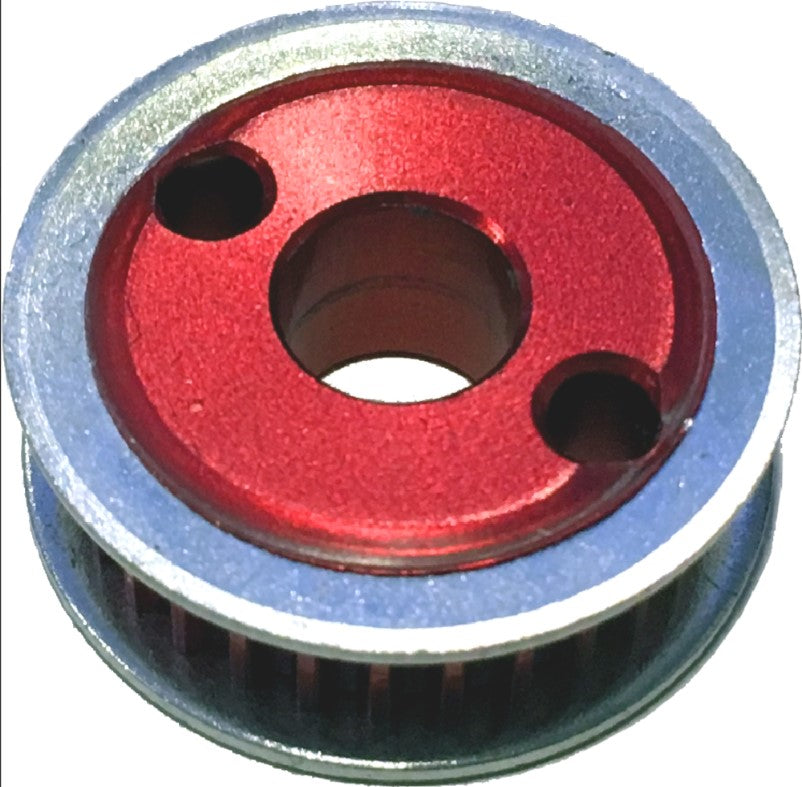

FingerTech S3M Timing Pulley 30T No Hub
FingerTech S3M Timing Pulley 30T No Hub
Regular price
$6.94
Regular price
Sale price
$6.94
Unit price
/
per
Couldn't load pickup availability
This pulley is specially-made for use with drum weapons such as our a Beater Bar Kit.
Use it to replace damaged ones, stock up on spares, or for your own creation!
It can be used with TWO of our 4mm wide timing belts.
Share


Collapsible content
Specs
- 30T 3mm pitch HTD pulley
- 9.78mm (0.385") bore with no hub
- Usable belt width: 8.25mm (0.325in)
- Width: 11.3mm (0.446")
- Two 4.5mm (0.177") mounting holes spaced 19.05mm (0.75")
- Flange OD: 32mm (1.26in)
- Material: 6061 aluminum
- Weight: 18g (0.63oz)
