FingerTech Flat Mega Spark Mount (pair)

FingerTech Flat Mega Spark Mount (pair)

$4.59
$4.59
Sale Sold out

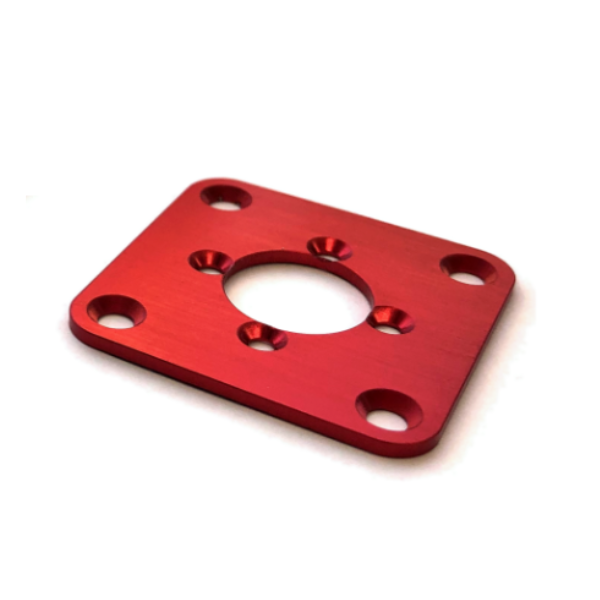

These anodized 6061 aluminum Flat Mega Spark Mounts are used to face-mount drive motors to flat robot sides.

These mount plates work for the Repeat Drive Max and the Fingertech Mega Spark Motors.

View full details

Specs

- Sold in pairs
- Width: 35mm (1.38in)
- Height: 35mm (1.38in)
- Thickness: 1.59mm (0.0625in)
- 18mm hole pattern for Beetleweight motors such as our ;Brushless Mega Spark Gearmotors or Premium 22mm Planetary Gearmotor.
- Four chassis mounting holes for #4 countersunk screws spaced 26mm apart
- Weight: 4.1grams (0.14oz) each

 - For mounting motors, use these M2-0.4 x 5mm flathead screws.
