Radiomaster

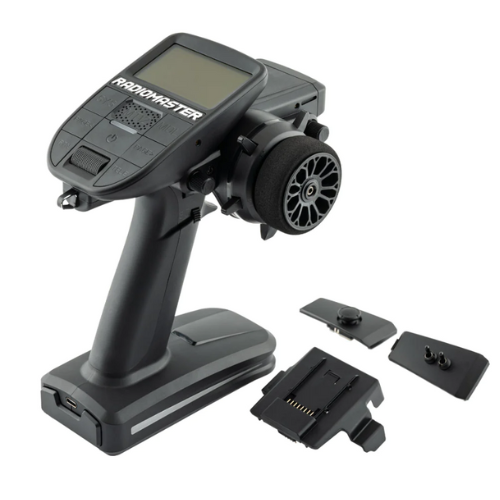

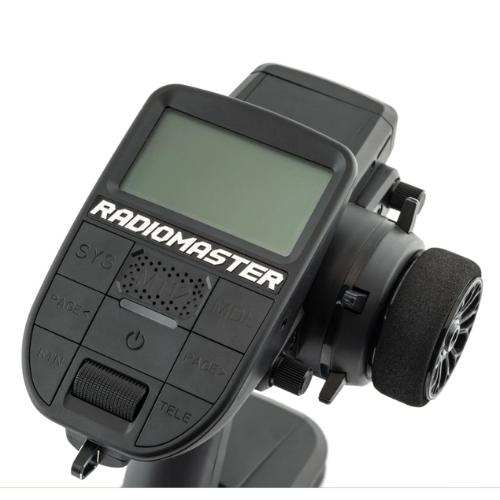

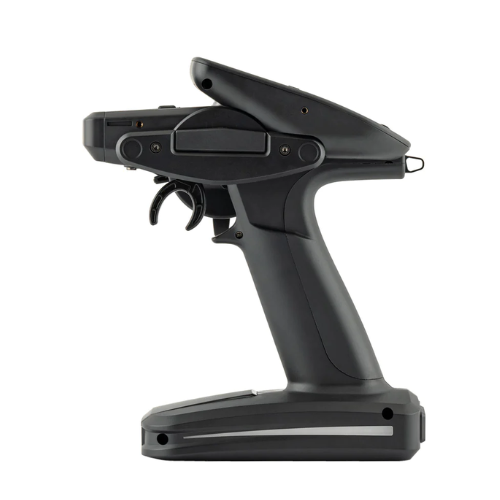

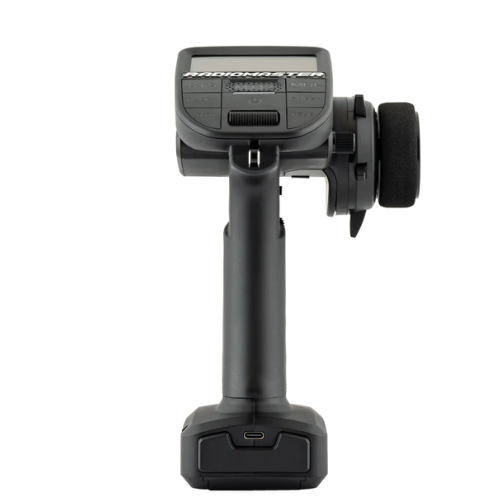

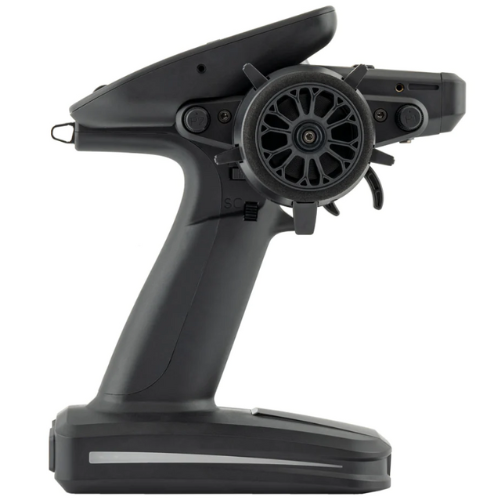

MT12 Surface Radio Controller | ELRS | FCC

MT12 Surface Radio Controller | ELRS | FCC

Regular price $129.99
Regular price Sale price $129.99
Sale Sold out

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.


  • Available with built-in ExpressLRS RF modules
  • Featuring a powerful STM32F407VGT6 with 1MB Flash
  • Preinstalled EdgeTX firmware
  • QC3.0 fast charging supporting 2.0A MAX
  • Compact design with excellent ergonomics
  • Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
  • Standard Nano module compartment
  • RadioMaster standardized button layout
  • Rotatable antenna
  • Customizable base switches or 4 way joystick included


View full details

Collapsible content

Specs

  • Item: MT12 Surface Radio
  • Physical dimensions: 177.8*118.4*207.8mm
  • Weight: 480 grams
  • Operating frequency: 2.400GHz-2.480GHz
  • Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
  • Supported protocols: Module dependent
  • Operational current: 160mA for 4in1 / 320mA for ELRS
  • Operational voltage: DC 6.6-8.4V
  • Operating system: EdgeTX
  • Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
  • Display: 128*64 Monochrome LCD
  • Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
  • Charging: Built in USB-C Charging
  • Firmware Upgrade method: Via USB or SD card
  • Wheel and Trigger sensor: Hall-effect
  • Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

Includes

Safety

Documents | CAD Models
