Overkill Robotics Power Switch
Overkill Robotics Power Switch
Couldn't load pickup availability

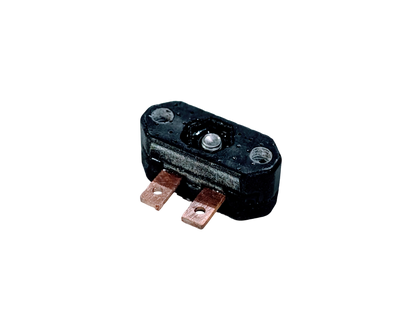

Overkill Robotics has developed a versatile power switch that allows for multiple mounting methods. No longer do you have to find a wall in the robot to mount a switch. The switch can be mounted on any flat surface and is invertible so you can access the power switch on the same surface it is mounted to. You do not need to have a clear path all the way through your robot to turn on/off. The switch has been tested up to 4S battery with no issues. Some sparking within the switch may be experienced, which is normal, due to the low resistance within the switch.
Share




Collapsible content
Specs
Material: ABS like resin, copper, 7075 aluminum
Screw: 7075 M3 Screw (2mm Hex size)
Copper Terminals: .134” x .25” with .060” hole; 0.040” thick
(3.4mm x 6.35mm with 1.52mm hole; 1.01mm thick)

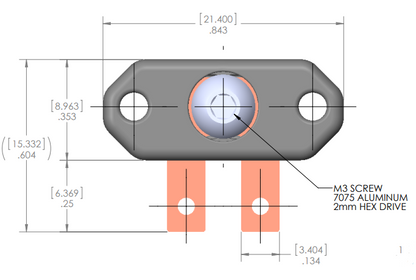

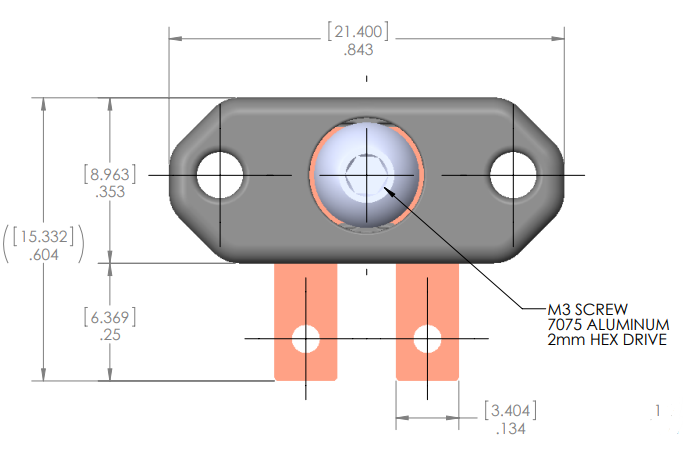

Size: .843” x .604” x .381” (21.4mm x 15.33mm x 9.68mm)
Weight: 3g
Mounting: 2 – M3 Tapped holes, .625” (15.875mm) apart
Includes
Safety
Documents | CAD Models
