This Mantis Weight is a 6lb-class combat robot built around a vertical lifter concept, blending aggressive front-end control with a modular weapon and wedglet system. This design emphasizes versatility, serviceability, and competitive performance in the mantis weight (6lb) class.

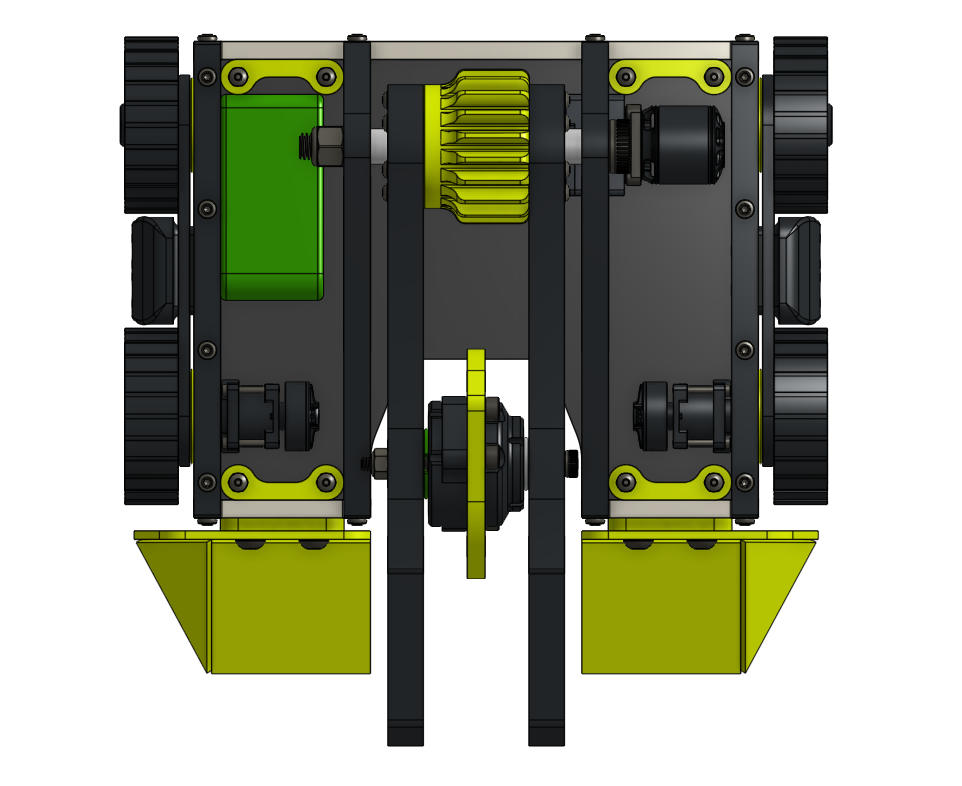

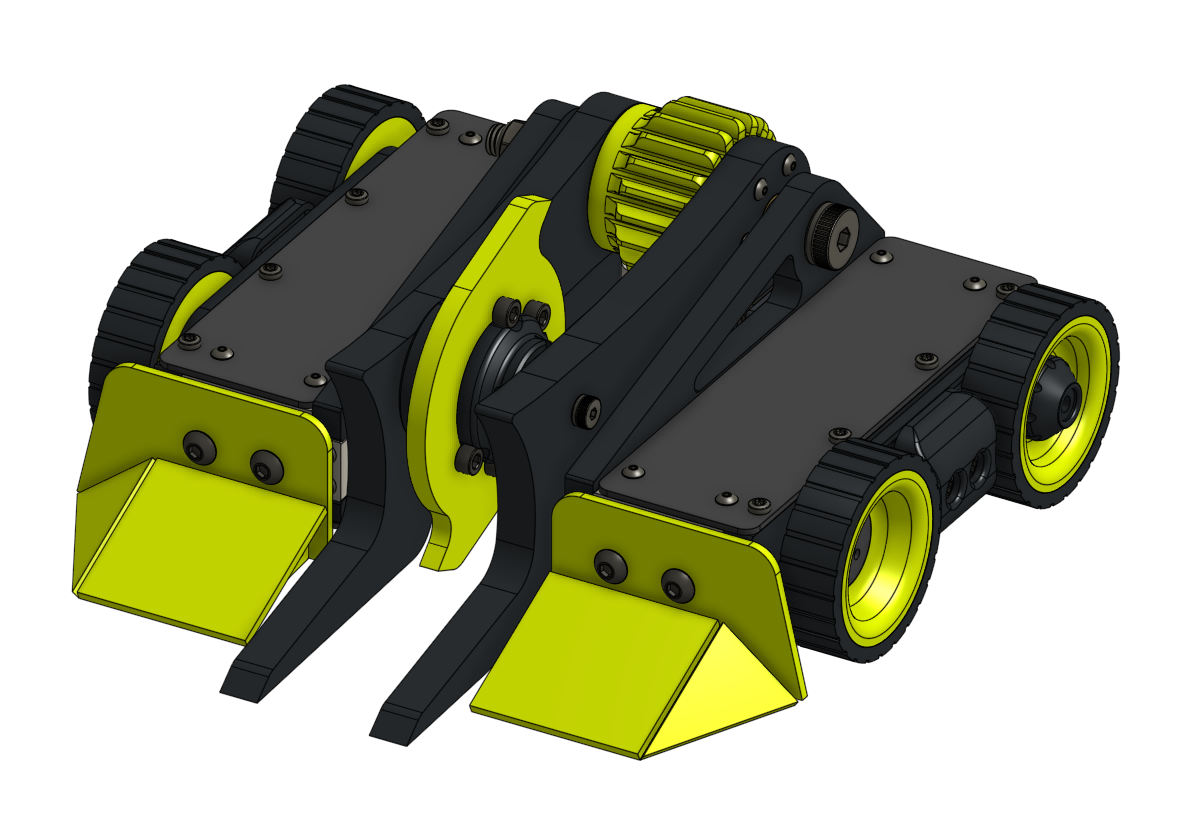

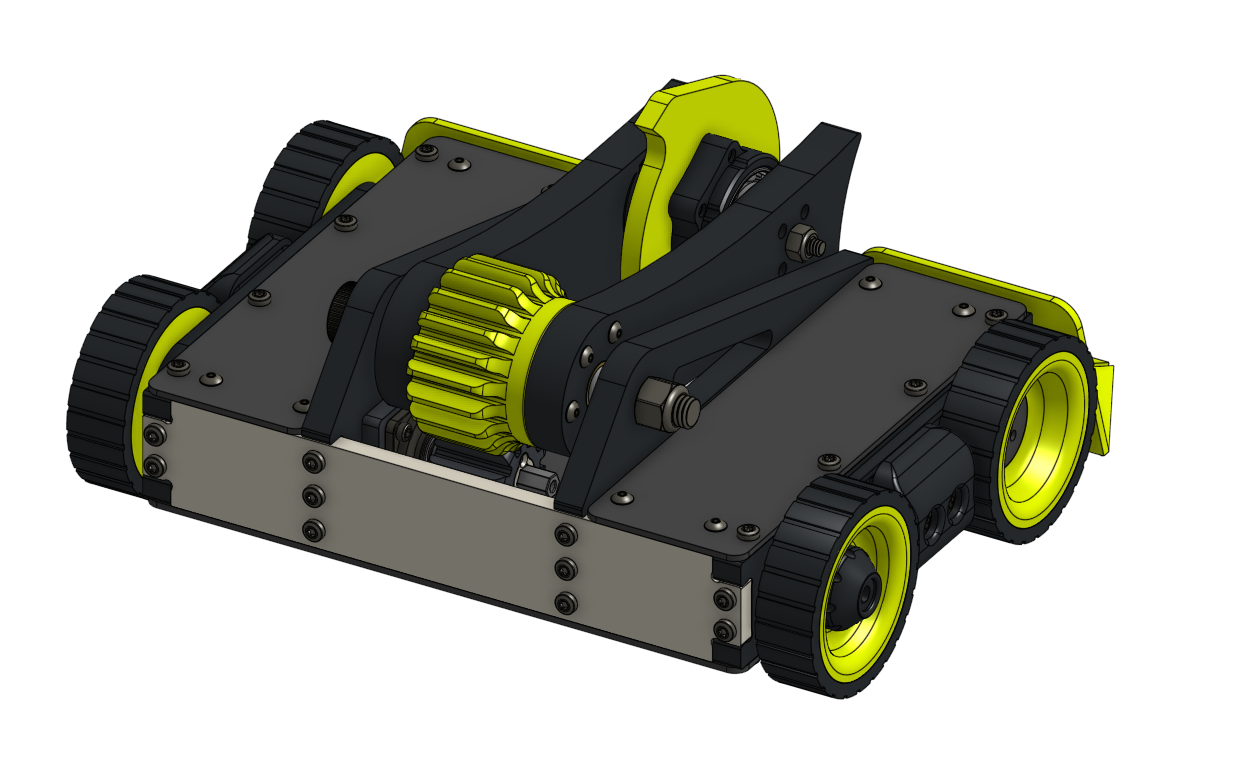

This CAD package gives builders a complete look at the robot’s architecture, including chassis layout, lifter geometry, and front-end configurations. Multiple wedglet options—including both the original design and a flat variant—are included to allow for tuning based on opponent and arena conditions.
This design is actively being built and tested, and further refinement is ongoing.
Important Notes:
This CAD is provided free of charge, but must be “purchased” through our system to access the download
Intended for builders looking to study, modify, or build their own version
Credit for all design work goes to DJ, with direction and commissioning by Casey (RSL)
Whether you’re looking to build your own version, learn from a competitive design, or adapt elements into your own bot, this Mantis Weight CAD is a solid foundation to start from.
