FingerTech Mini Terminal Block (pair)

FingerTech Mini Terminal Block (pair)

Regular price $4.64
Regular price Sale price $4.64
Sale Sold out

These FingerTech Mini Terminal Blocks are a good solution when you don't want to solder every wire connection. They easily connect and disconnect up to four 18ga wires to a common connection point.

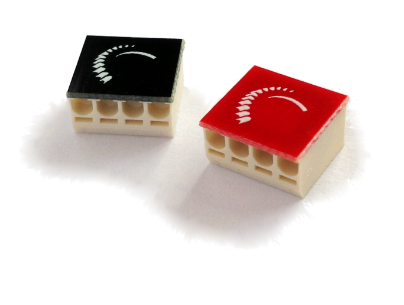

This includes 1 red and 1 black terminal block to help identify positive and negative (ground) connections.

These are also used in the FingerTech 'Viper' Kit

View full details

Collapsible content

Specs

  • Material: Glass-filled nylon, 0.20m Beryllium Copper retainer tabs
  • Dimensions (each): 10.6 x 9.8 x 5.8mm (0.42 x 0.39 x 0.23in)
  • Weight (each): 0.7grams (0.025oz)
  • Accepts wire size: 18-24gauge solid or stranded wire (up to 1mm diameter). Larger wires can be used by trimming away enough strands to fit.
  • Continuous Current: 6A (forever). Max current is 30A burst.

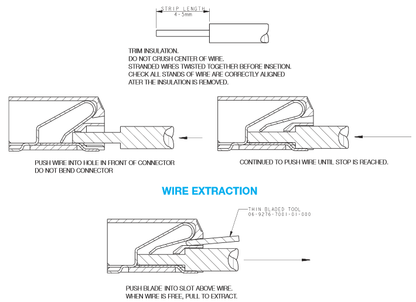

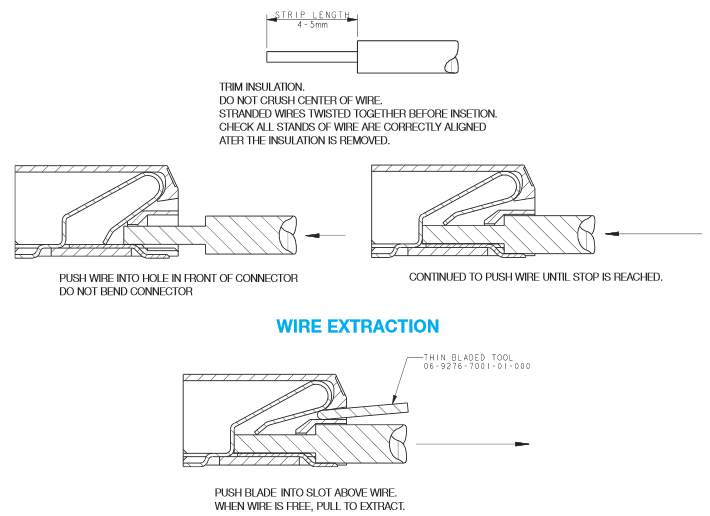

Installation:

  1. Strip insulation back 4-5mm (0.15-0.2in).
  2. Twist stranded wires before insertion. Tinning with solder is recommended.
  3. Push wire into one of four holes until stop is reached.
  4. To release a wire from the terminal block, push a thin flat tool into the slot above the wire to free it.

Includes

Includes one red and one black push-wire 4-terminal block.
