Robot Smashing League

NeutronRC Mini 20/30 Dual Hold Mini 45A AM32 ESC

NeutronRC Mini 20/30 Dual Hold Mini 45A AM32 ESC

$38.80
$38.80
Sale Sold out

These are setup with AM32 and can handle 3-6s batteries. They work well for antweights and eliminate most of the wiring.

Includes

  • 1x NeutronRC AM32 45A 32Bit 4in1 ESC
  • 4X Silicon grommets M3X8mm
  • 1 x XT60 Connected Cable
  • 1 x 8pin Cable
  • 1 x Capacitor 35V 470uF

CAD Model curtesy of Seth from Just 'Cuz Robotics

View full details

Specs

Input voltage: 3-6S LiPo

Con.Current: 45A

Peak Current: 55A≥ 10S

Firmware: AM_32(AM32_NEUTRON_F421);BLS/Blujey(G_H_30)

Support: Dshot 150/300/600

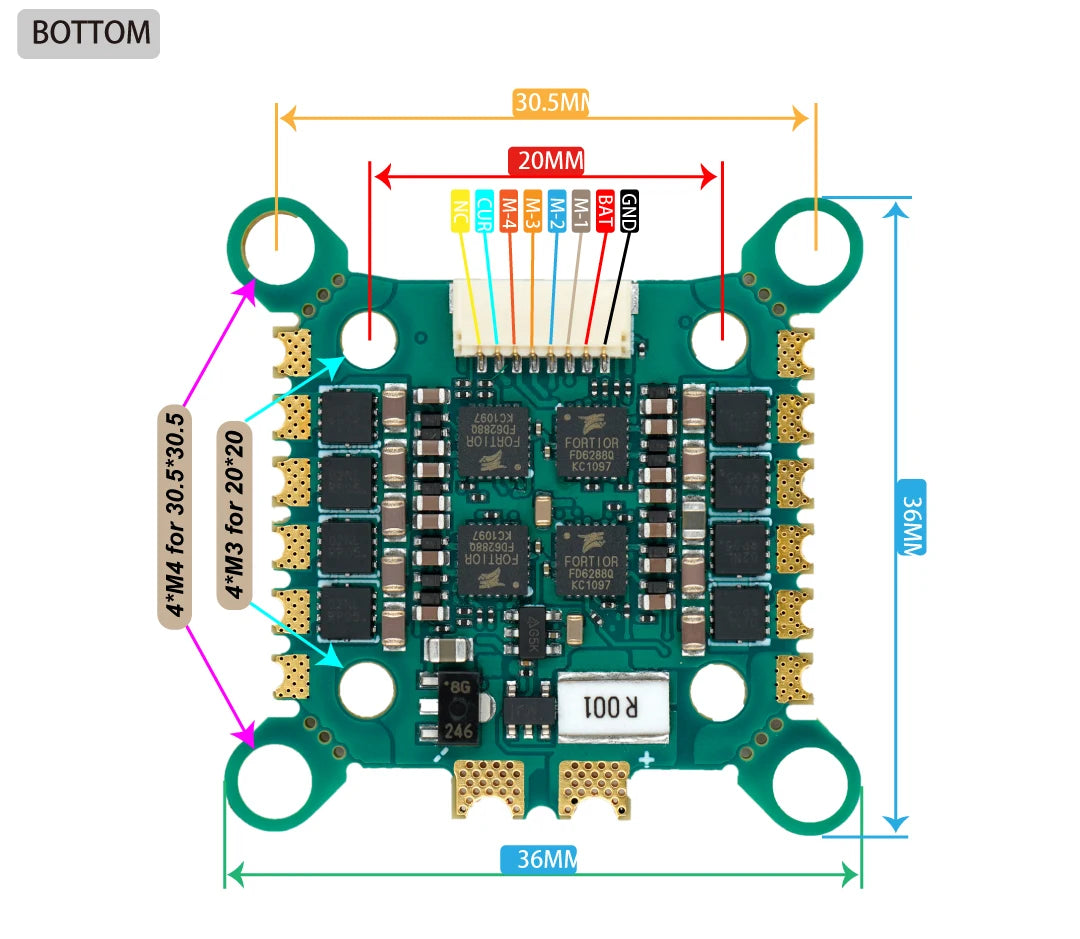

Mounting hole : 20X20/M3,30.5X30.5 mm/M4

BEC: No

Product size: 36*36*6mm

Weight: 6.5g

Includes

1x NeutronRC AM45 AM_32 45A 32Bit 3-6S 20/30.5mm 4in1 ESC

4X Silicon grommets M3X3.5mm

1 x XT60 Connected Cable

1 x 8pin Cable

1 x Capacitor 35V 470uF

Safety

Documents | CAD Models

Model of the 4-in-1 curtesy of Seth from Just 'Cuz Robotics
