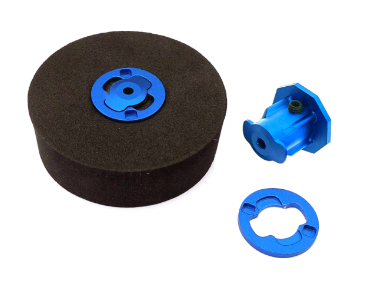

FingerTech Twist Hubs (pair) 3mm Wide

FingerTech Twist Hubs (pair) 3mm Wide

$18.21
$18.21
Sale Sold out

Replacement 3mm bore, 0.75" wide Twist Hubs for the Viper Combat Robot Kit.

Foam wheels are highly recommended for combat robots as they effectively absorb impacts and protect drive motors from damage caused by stripped teeth.


Combine with FingerTech Foam Wheels, or if you already have Lite Flites (or their thinner counterpart Lectra Lites) they can be used with Twist Hubs too!

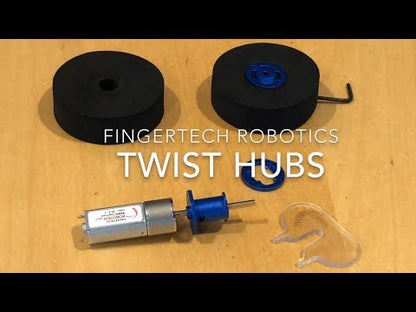

The Foam Tires can be quickly and securely mounted to your robot using the Twist Hubs.

View full details

Specs

  • Anodized 6061 aluminum for high strength and low weight.
  • The foam tire is held tightly by a custom locking washer, which must be pressed in and turned 90 degrees to release.
  • The hex flange will allow you to keep driving even if the locking washer is destroyed.
  • The hub is secured to the motor shaft by a strong 8-32 setscrew.
  • Available with 3mm and 4mm shaft bore, but can be drilled out as big as 6.35mm (0.25in).
  • Weight: Thin size (0.50in wide) weighs 5.5g each. Wide size (0.75in wide) weighs 6.7g each. (Remember that you will be removing the 3g plastic hubs from Lite Flites and Lectra Lites first!)

 Requires:

Includes

2 Twist Hubs (Foam Wheels sold separately.)
