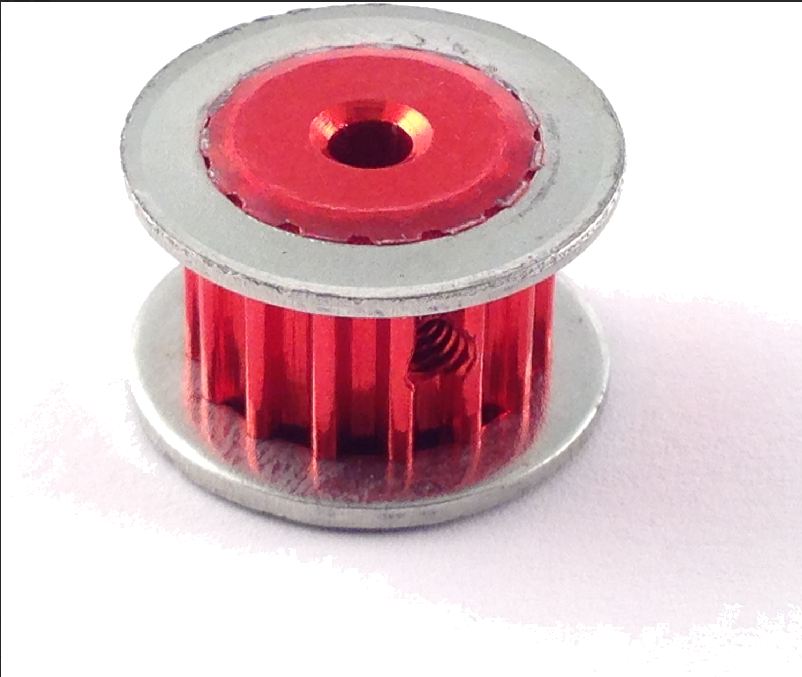

FingerTech S3M Timing Pulley 15T Dual

FingerTech S3M Timing Pulley 15T Dual

$4.50
$4.50
Sale Sold out

Our specialty Timing Pulleys and Belts are the perfect solution for transmitting power from motors to wheels or shafts.

This double-wide pulley allows TWO belts - one to a front and one to a rear wheel, or two to your weapon for extra strength!
Use with FingerTech Timing Belts, or any other 3mm pitch belt.
• S3M pitch (3mm high-torque)
• Belt Width (maximum) : 8mm
• Size: 15 Teeth
• Bore: 3mm - Can be drilled up to 7.14mm (9/32")

View full details

Specs

Pitch (distance between tooth centers): 3mm
Belt Width (maximum): 8mm
Material: 6061 Aluminum
Size: 15 Teeth
Flange Diameter: 18.2mm (0.72")
Pulley Width: 11.5mm (0.45")
Bore: 3mm (15T can be drilled up to 7.14mm (9/32")
 Includes 4-40 setscrew for fastening to shaft.  Make sure your shaft has a flat spot. Make one yourself with a file if you have to!  Setscrews do not hold well on round shafts.
Setscrew is positioned in center of pulley width.
Setscrew requires 0.050" hex wrench
