Fingertech

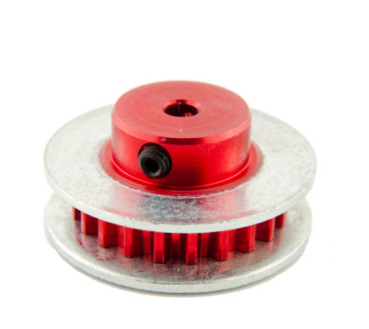

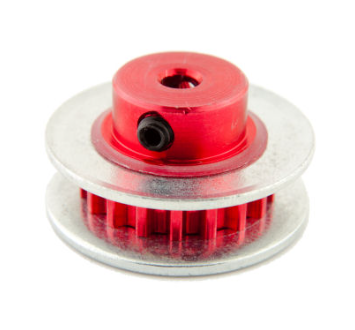

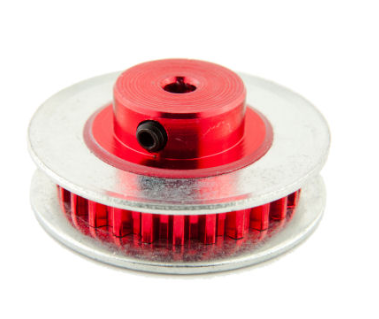

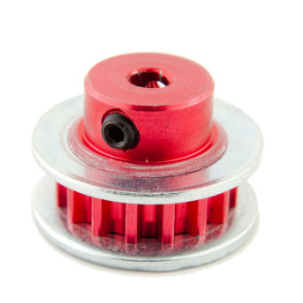

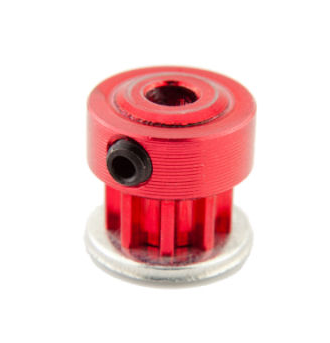

FingerTech S3M Timing Pulley

FingerTech S3M Timing Pulley

Regular price $4.93
Regular price Sale price $4.93
Sale Sold out
Size

Timing pulleys and belts are one of the best ways to transmit power from your motor to drive wheels or a spinning weapon.

Check out our Timing Belts, or you can use any other 3mm pitch belt.

• S3M pitch (3mm high-torque)
• Belt Width (maximum): 4mm
• Sizes: 9 Teeth - 26 Teeth
• Bore: 3mm (9T, 15T and 16T can be drilled up to 5/32", larger pulleys can be drilled up to 1/4")


Need help determining what belt size to use? Check out Fingertech's Pulley-Belt Distance Calculator!

View full details

Collapsible content

Specs

Pitch (distance between tooth centers): 3mm
Belt Width (maximum): 8mm
Material: 6061 Aluminum
Size: 15 Teeth
Flange Diameter: 18.2mm (0.72")
Pulley Width: 11.5mm (0.45")
Bore: 3mm (15T can be drilled up to 7.14mm (9/32")
 Includes 4-40 setscrew for fastening to shaft.  Make sure your shaft has a flat spot. Make one yourself with a file if you have to!  Setscrews do not hold well on round shafts.
Setscrew is positioned in center of pulley width.
Setscrew requires0.050" hex wrench
