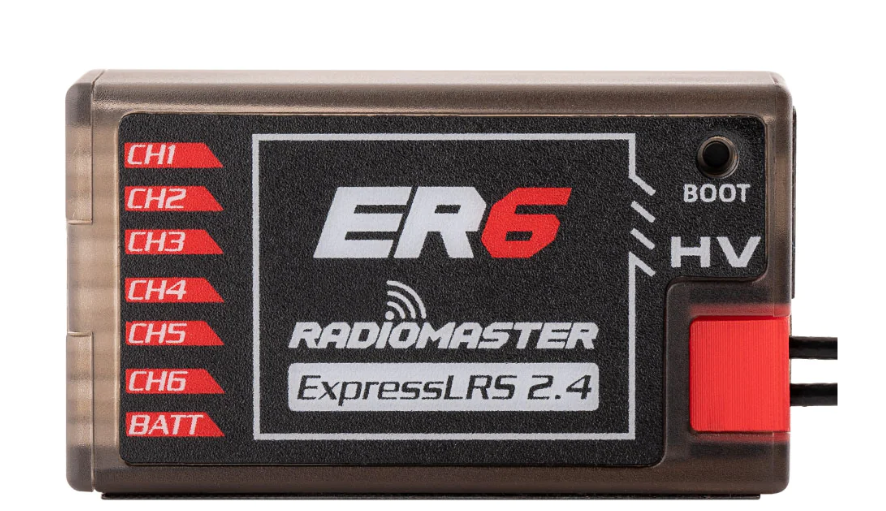

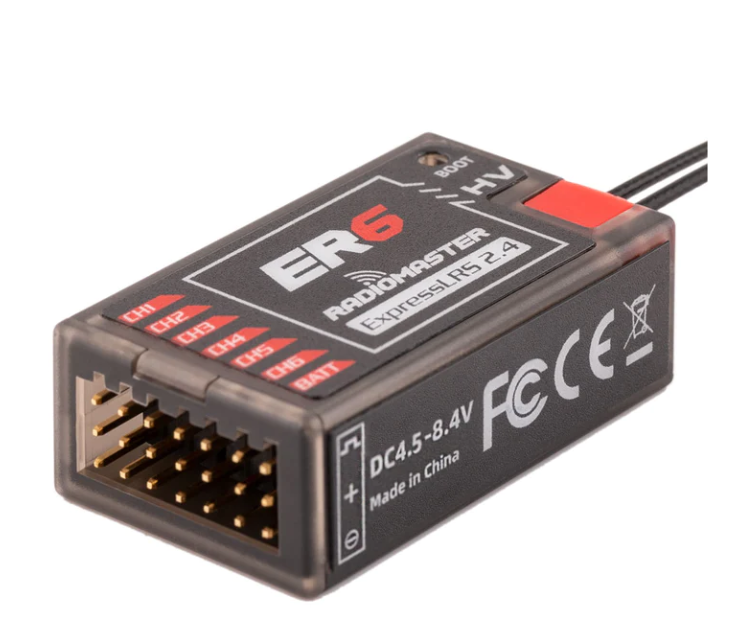

ER6 2.4GHz ELRS PWM Receiver

ER6 2.4GHz ELRS PWM Receiver

Regular price $24.99
Regular price Sale price $24.99
Sale Sold out

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed.

It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

View full details

Collapsible content


  • Item: ER6 2.4GHz ELRS PWM Receiver

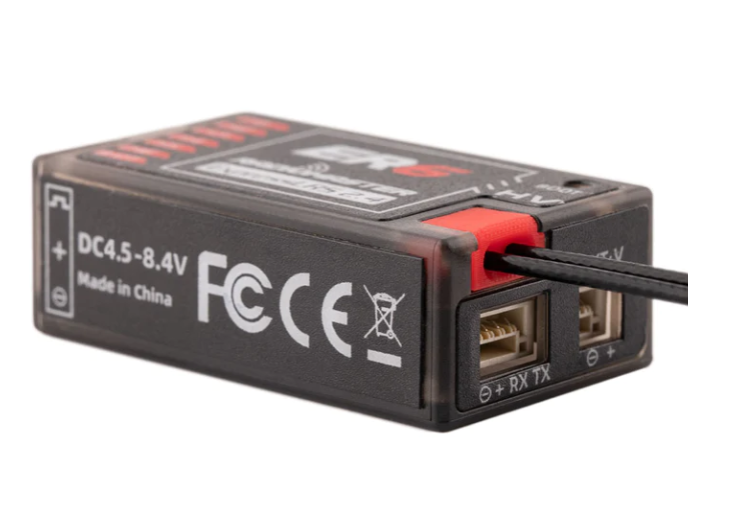

  • Power supply: DC 4.5 - 8.4V

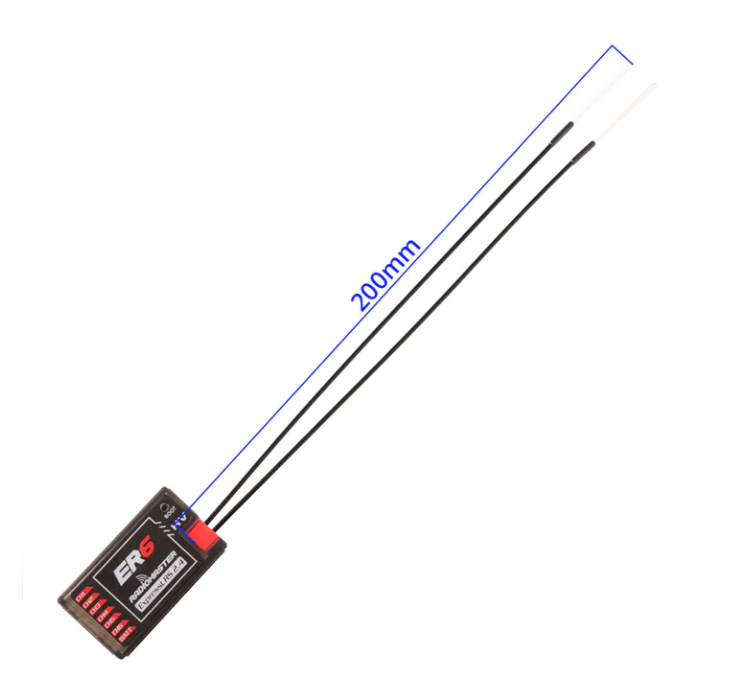

  • Antenna type: 20cm high sensitivity dual antenna
  • Wireless protocol: ExpressLRS 3.3.0 pre-installed
  • Output channel: 6CH PWM
  • Serial Output: CRSF / Sbus
  • Telemetry power: maximum 100mw (LUA Adjustable)
  • Telemetry Battery voltage detection range: DC 4.0 - 35V

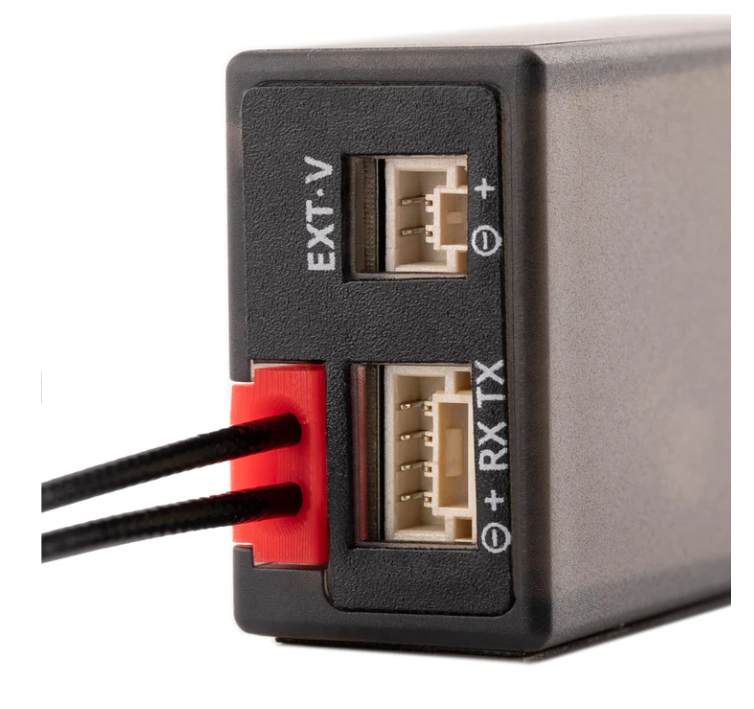

  • Bus interface: CRSF
  • Weight: 14.5 grams

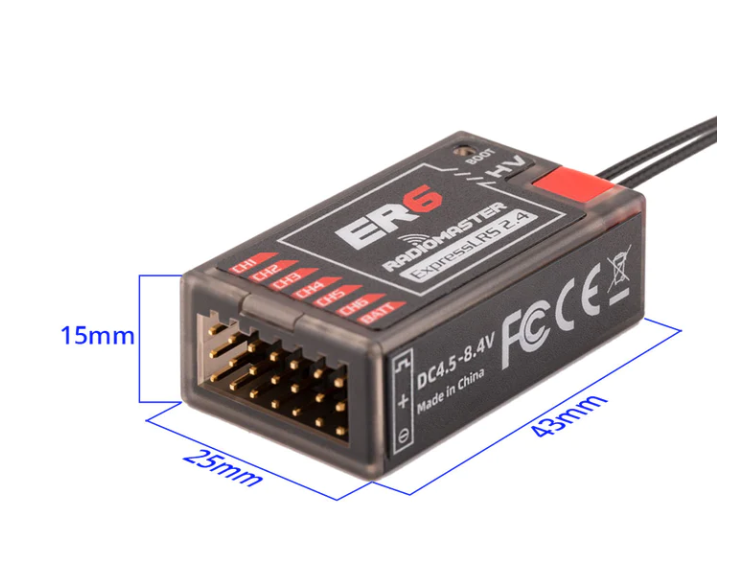

  • Dimensions: 43*25*15mm
  • Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX


  • 1 * ER6 2.4GHz ELRS PWM Receiver
  • 1 * Voltage telemetry wire (Type-B)
  • 1 * CRSF wire
  • 1 * ELRS- RX- SBUS wire
  • 1 * User Card
